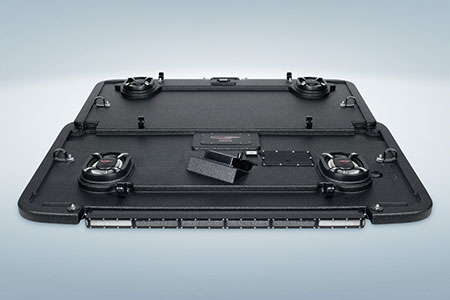

10PRC Fits 2010-14 Polaris Ranger 800 Crew Cab and 2016 Ranger Crew 570-6
This ProBox top is extremely rigid and can tolerate repeated abuse. All ProBox tops can endure wind speeds of 100+ mph while being hauled to and from your favorite riding destination.
The ProBox top is constructed from multiple layers of 1/2", waterproof, ultralite fiberglass composite, then sealed with our ProBox Armor Coating. Each piece of the ultralite fiberglass composite is made up of two layers of woven fiberglass fabric and three layers of counter strand. The outer rim has three laminated pieces creating 15 layers for added strength and enabling it to withstand hard hitting blows that may come from overhead.
The design of our fiberglass composite top, with its engineered air space cavity and the 6 1/2" "injection woven" woofer with aluminum dome tweeter built-in 2-way crossovers ensures greater clarity.
Cleaning the roof system is no problem. Simply close all marine covers and power wash the complete roof system—speakers and all. Be safe, have fun and enjoy the best roof system on the market.
- (4) ProBox 6"x9" marine component speakers
- Wireless Bluetooth Media Control Center
- ProBox 500W Plate Amp
- Quick release 3-pin power connector
- Dome light
- One year warranty. Original receipt from date of purchase required for warranty work.
RGB components and color trim option not included.
ProBox 6x9 Marine Components
The ProBox 6x9 component speakers have been designed without a center pole behind the mid/tweeter. Instead, the mid/tweeter are suspended above the cone, making the 6x9 a true woofer with excellent bass response. This design also allowed us to mount the optional waterproof RGB LED circuit board behind the mid/tweeter. A reflective coating on the cone enhances the colors from the RGB LED circuit board, creating most impressive results.
Thanks to UV-resistant grilles, stainless steel hardware, plated speaker terminals, and rubber surrounds, the ProBox 6x9 component speakers are able to withstand the deteriorating effects of water, salt, and UV rays. Built-in 2-way crossovers ensure greater clarity.
- Patented woven waterproof paper cone
- Polypropylene woofer
- Polypropylene mid-range
- Aluminum tweeter
- Automotive grade black painted finish
- Power handling: 100 W (RMS)
- Sensitivity: 94 dB
- Frequency response: 55Hz - 20kHz
Wireless Bluetooth® Media Control Center
The ProBox Media Control Center allows you to stream your tunes wirelessly via Bluetooth® technology from your mobile device to your ProBox top. The multifunction, single knob interface performs all the basic audio control functions, while the included USB charging port delivers power to your phone. A standard 3.5mm auxiliary port is included for wired connectivity, and two marine grade switches control the front and rear LED light bars.
- Bluetooth® control with volume, play/pause, next track, and previous track functions
- 3.5mm AUX/USB (charge only) module
- Front and rear light switches
- Built-in fuse panel with (4) fused circuits — also serves as a power distribution block for better termination
- Removeable front panel for easy access to fuses
Bluetooth® Module Instructions
Click here to download a PDF (94 kB)

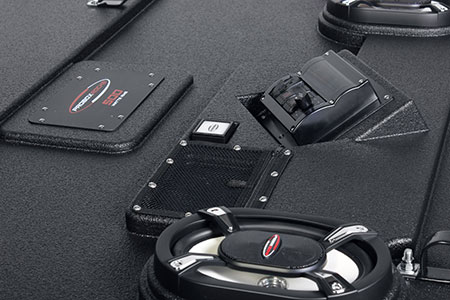

ProBox 500W Plate Amp
Want to get loud? The 500 watt (RMS) ProBox Plate Amp delivers. Its clean, flush design has no exposed wiring, keeping mud, water, dust and dirt from getting into the circuit board while off-roading. The back side of the Plate Amp has a closed cell gasket to ensure a good seal once the amp is mounted to the top. The Plate Amp is safe to power wash with no problems.
- Power @ 2Ω: 250 W x 2 channels (RMS)
Assembled in the USA with parts from China. Availability, pricing, descriptions and specifications subject to change without notice.
