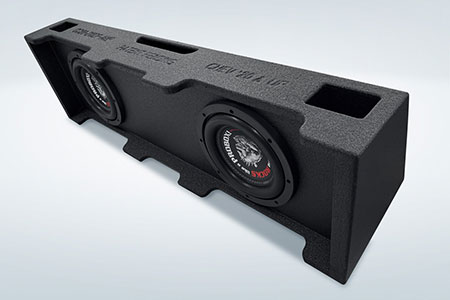

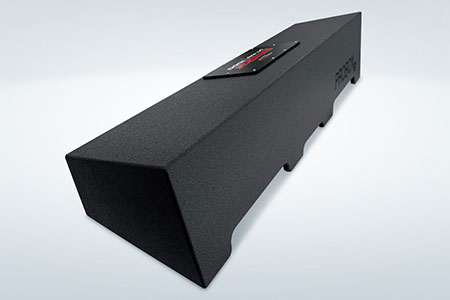

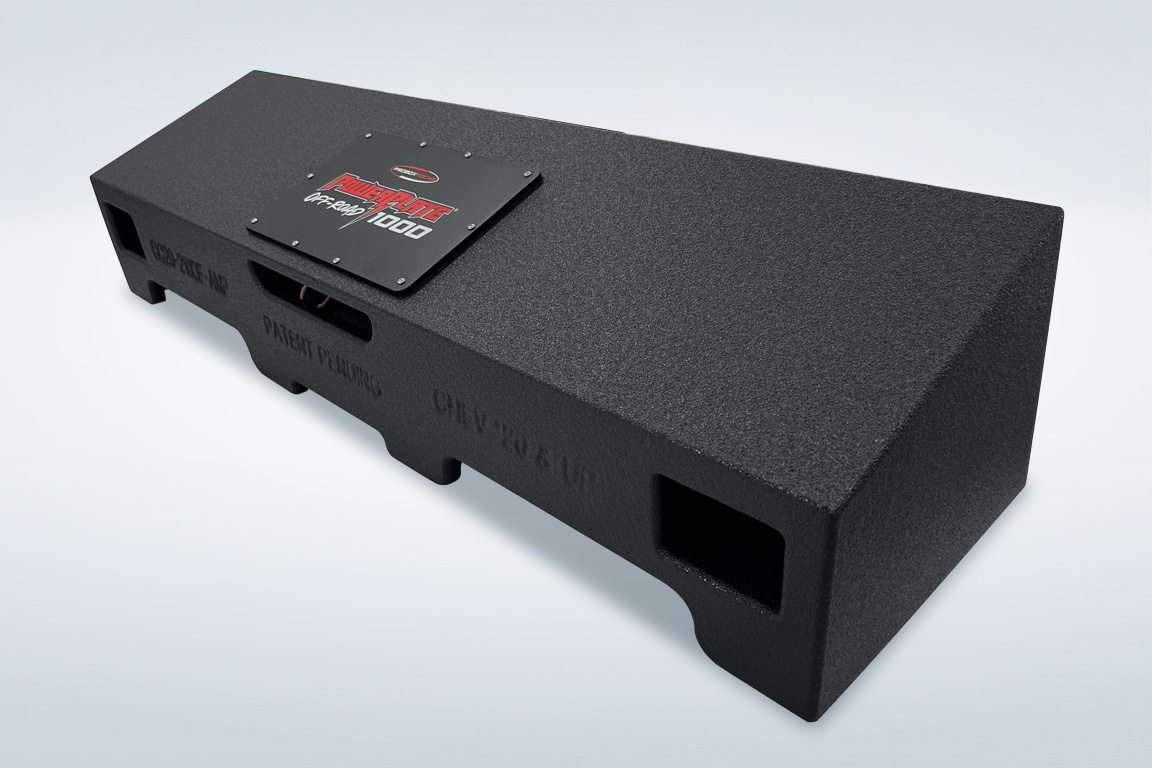

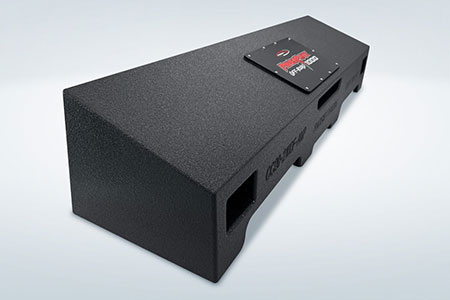

CC20-210DF-AMP Fits 2019 and Up Chevy/GMC Crew Cab

PATENT PENDING

  • Patent Pending
  • Patent Pending
  • Patent Pending

Specificiations

  • (2) 10" subs with grills
  • Ported
  • 800 W ProBox Plate Amp
  • Power handling: 800 W RMS
  • Downfire

Assembled in the USA with parts from China. Availability, pricing, descriptions and specifications subject to change without notice.

Enclosures Not Sold Empty.

ProBox subs are specifically designed to be used with ProBox enclosure formulas.

ProBox PRO-10 Subs

Features

  • Power handling: 800 W RMS
  • Basket material: Cast aluminum
  • Magnet weight: 100 oz.
  • Magnet material: Strontium ferrite
  • Woofer structure weight: 15 lbs
  • Cone body material: Paper
  • 1-piece dust cover: Polyurethane
  • Double Stitched surround
  • Surround material: Foam
  • Voice coil diameter: 2.5”
  • Voice coil wire type: Aluminum, high temp
  • Vented pole: Yes
  • Compression terminals: Yes
  • Chrome back plate
  • Primary box type: Vented
  • Sensitivity (1W/1m): 86 dB
  • DVC 2Ω: 2+2 PRO10-D2
  • DVC 4Ω: 4+4 PRO10-D4

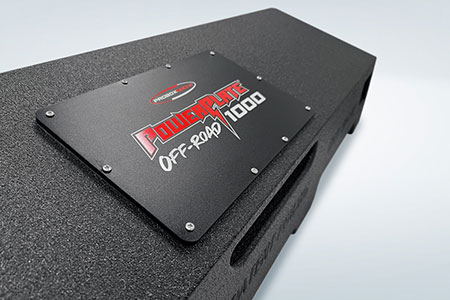

PBR800.4 Plate Amp

Want to get loud? The 800 watt (RMS) PBR800.4 ProBox Plate Amp delivers. It features a clean, flush design with no exposed wiring, keeping mud, water, dust and dirt from getting into the circuit board while off-roading. The back side features a closed cell gasket to ensure a good seal once the amp is mounted to the top. Our plate amps are safe to power wash with no problems.

Features

  • Power rating:
    125 W × 4 @ 4 ohms
    210 W × 4 @ 2 ohms

Need More Help?

If you need further assistance with tuning your system, please request support on our contact page, and a technician will contact you. The procedure takes 15 to 20 minutes. Our goal is to ensure you are getting maximum results from your new system, and that all settings are correct to prevent clipping. At full volume, you should have 100% clarity.

Example of burnt coils
