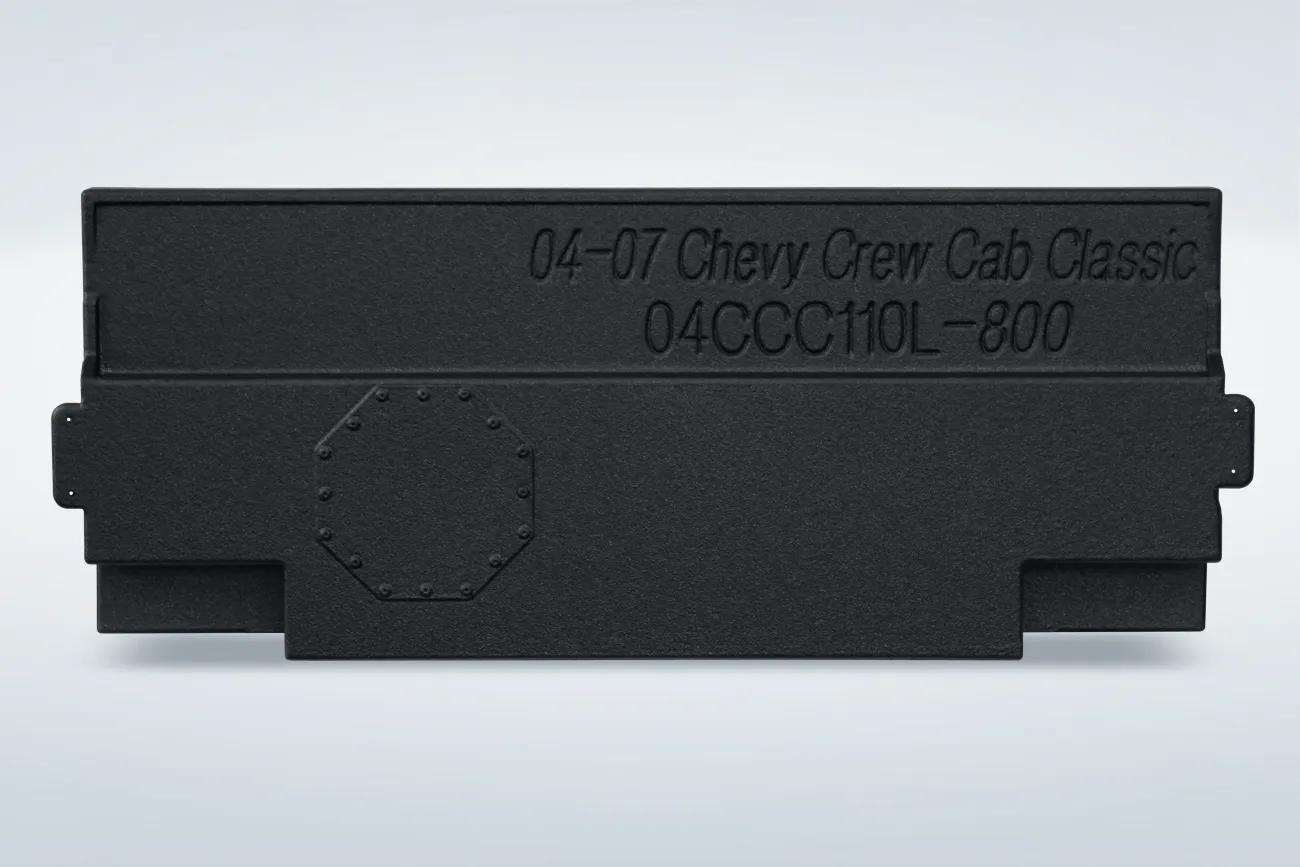

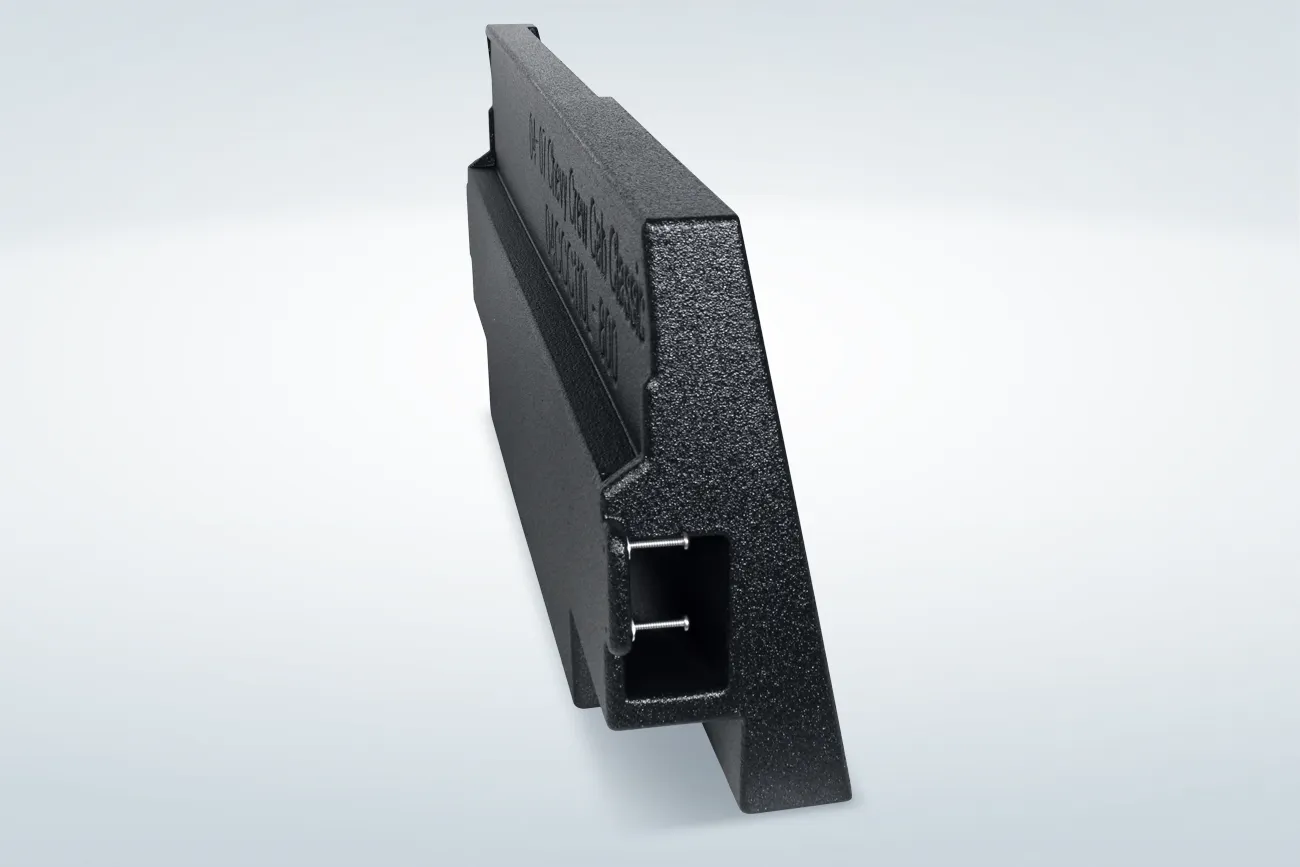

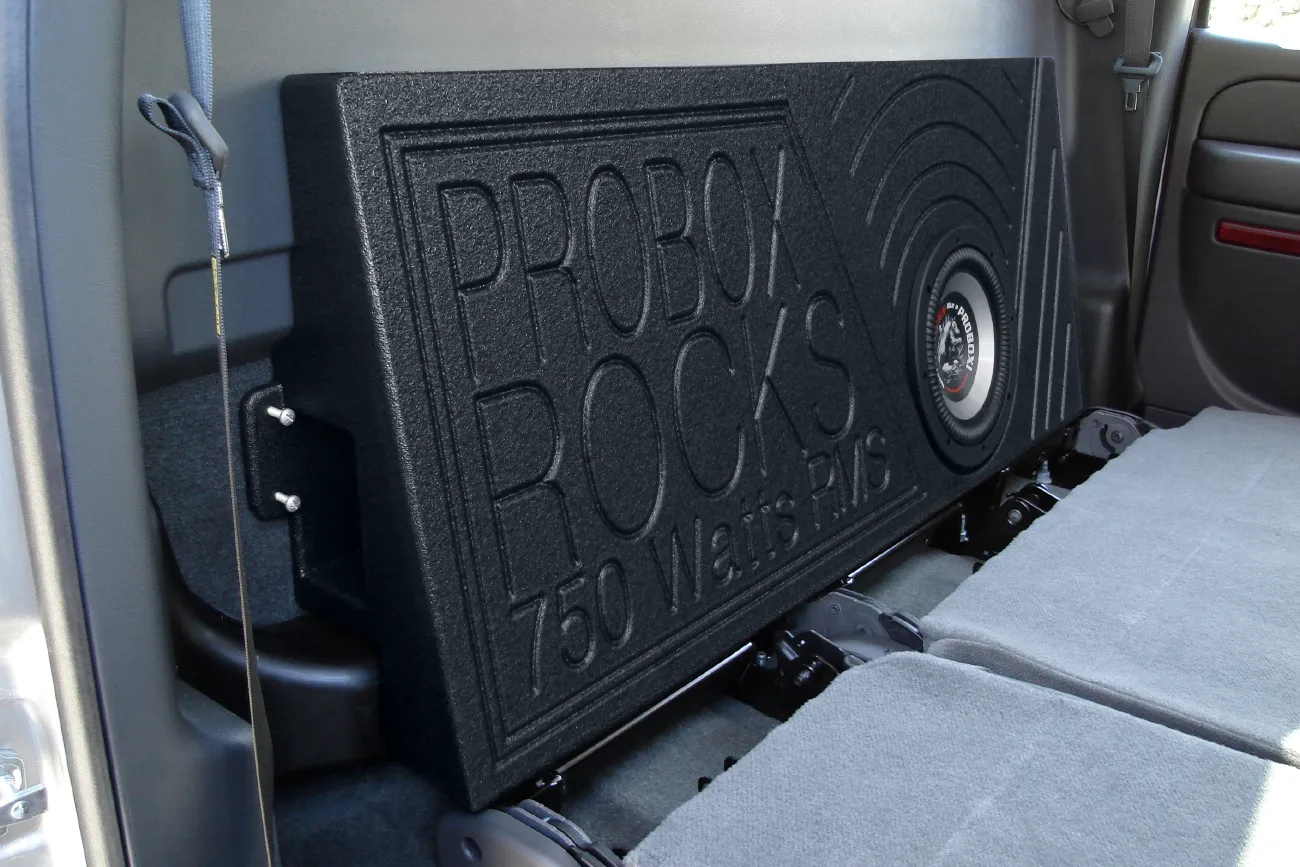

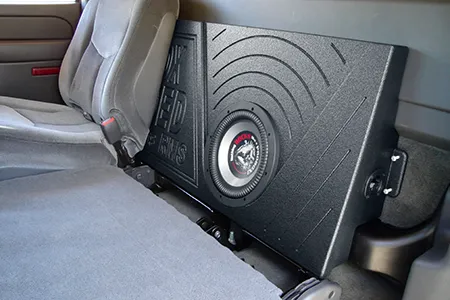

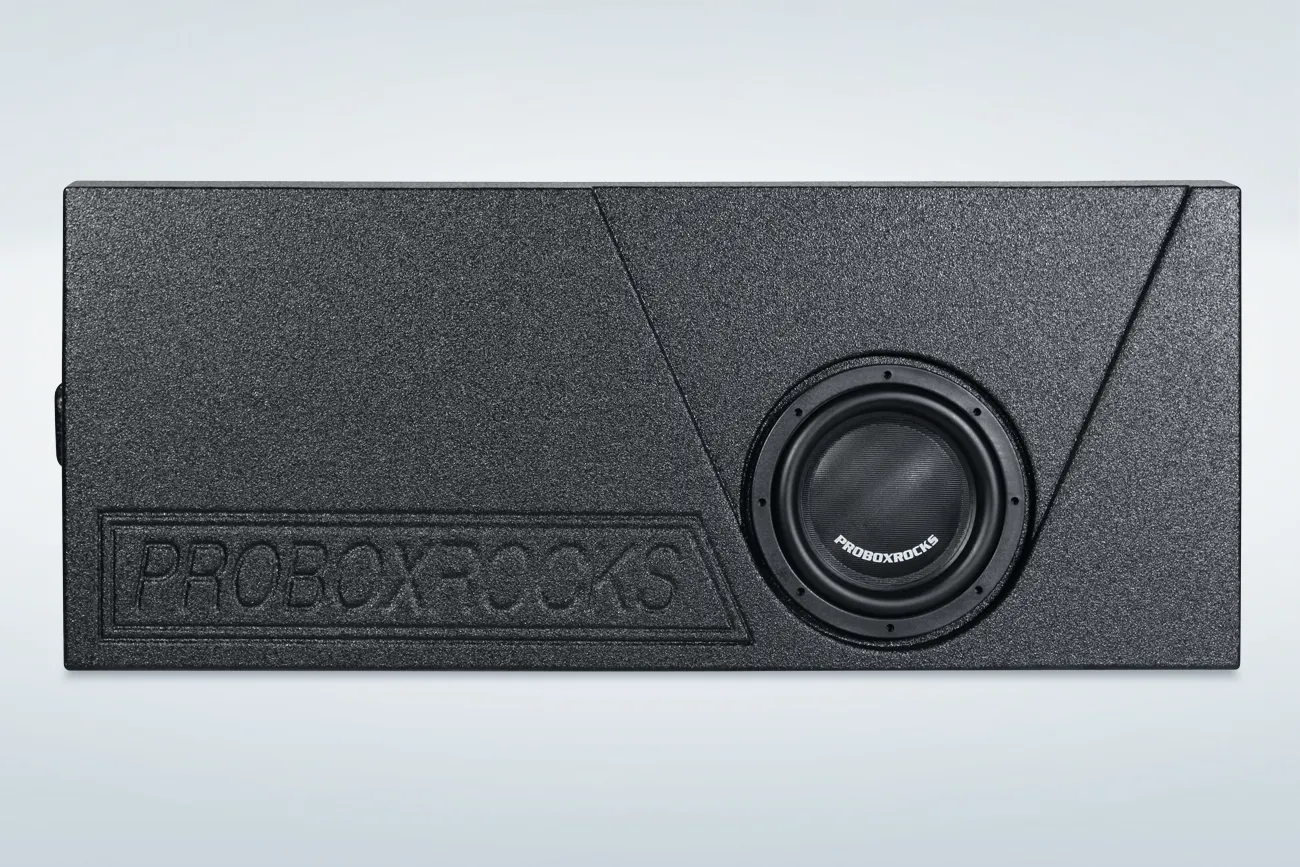

04CCC110L-800Fits 2004-2007 Chevrolet Crew Cab Classic (Canadian Version)

IMPORTANT: This ProBox will only fit in Chevrolet Crew Cab trucks that were built in Canadian factories. To determine if your truck was built in the US or in Canada, look at the sticker on the edge of your driver's side door. American-made trucks will have a VIN that starts with "1", while Canadian-made trucks will have a VIN that starts with "2".

Jump to American version

MSRP: $500

Assembled in the USA with parts from China. Availability, pricing, descriptions and specifications subject to change without notice.

Enclosures Not Sold Empty.

ProBox subs are specifically designed to be used with ProBox enclosure formulas.

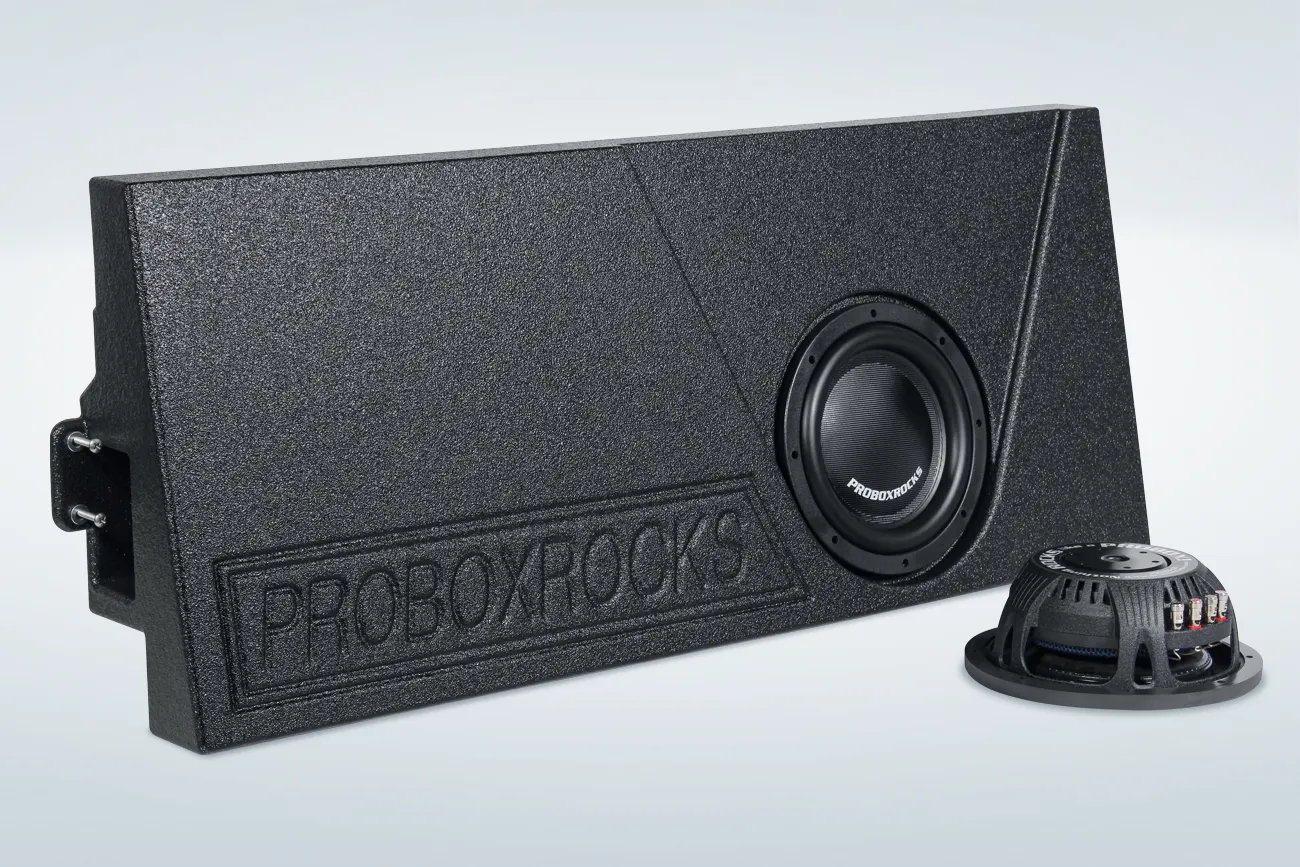

ProBox PRO-10S Shallow Mount Sub

Features

  • Power handling: 800 W RMS
  • Basket material: Cast aluminum
  • Magnet weight: 100 oz.
  • Magnet material: Strontium ferrite
  • Woofer structure weight: 14 lbs
  • Cone body material: Paper
  • 1-piece dust cover: Polyurethane
  • Double Stitched surround
  • Surround material: Foam
  • Voice coil diameter: 2.5”
  • Voice coil wire type: Aluminum, high temp
  • Vented pole: Yes
  • Compression terminals: Yes
  • Primary box type: Vented
  • Sensitivity (1W/1m): 86 dB
  • DVC 2Ω: 2+2 PRO10-SD2
  • DVC 4Ω: 4+4 PRO10-SD4

Important Technical Bulletin

Please refer to this Technical Bulletin for proper installation and settings for your ProBox enclosure. Improper installation may cause clipping and over-powering, which leads to burnt voice coils. Our one year warranty protects against manufacturer’s defects only—not burnt coils! An original receipt from date of purchase is required for warranty work.

View Technical Bulletin

Need More Help?

If you need further assistance with tuning your system, please request support on our contact page, and a technician will contact you. The procedure takes 15 to 20 minutes. Our goal is to ensure you are getting maximum results from your new system, and that all settings are correct to prevent clipping. At full volume, you should have 100% clarity.

Example of burnt coils
